preview

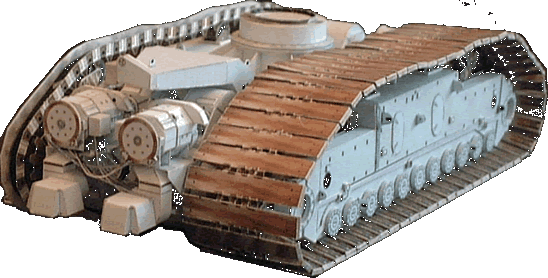

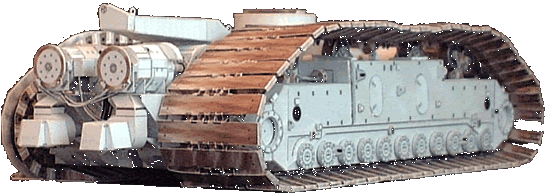

Preview of the CT truck prototype, you are looking at the 'outer' face. Note that also all cables are paper made. The inner track is not yet assembled to give a better view to the construction.

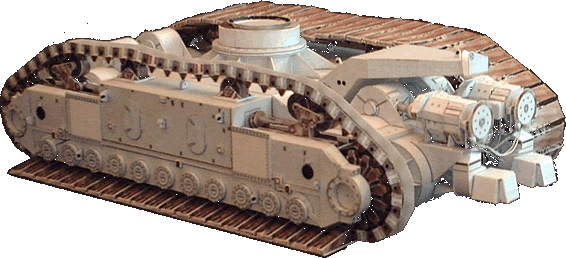

The 'inner' side of the truck - the two white areas are the insertion for the inner A-shaped steering arm. The unfinished track gives a better view to the wheel details.
A comparsion between the model and the original. The 'wings' on each side in front of the tracks were added later during the space shuttle program.

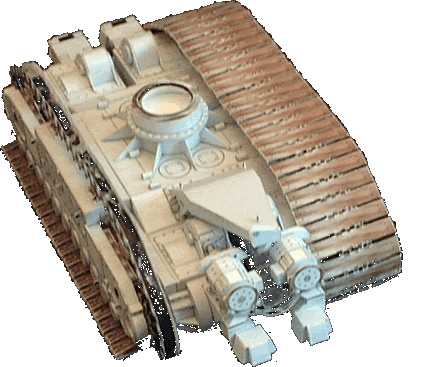

Top view, depicting the insertion for the guide tube
