c r a w l e r    t r a n s p o r t e r   p a p e r   m o d e l   k i t

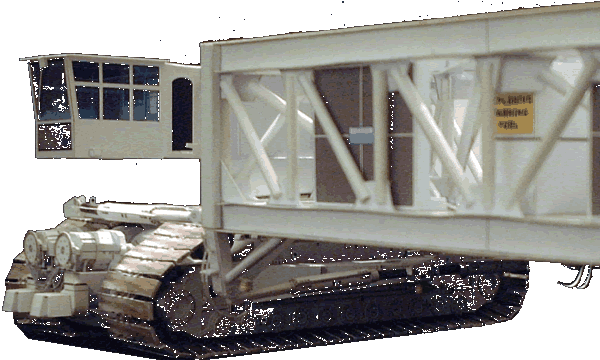

Closeup of the inner side of Corner B from a lower angle. You see the inner A - shaped steering arm with the mounted cylinders. Note the little lanterns attached to the suspension on the chassis and the steering arm, also the cables for the hydraulic cylinders are there.

The cylinders and the truck are not glued to the chassis, so their positioning is not yet perfect.
